# 👾 ElatoAI: Realtime Voice AI Models on Arduino ESP32
Realtime AI Speech powered by SoTA AI voice models on ESP32, with Secure WebSockets, and Deno Edge Functions for >15-minute uninterrupted conversations globally. We currently support OpenAI Realtime API, Gemini Live API, xAI Grok Voice Agents API, Eleven Labs Conversational AI Agents, and Hume AI EVI-4.
- [🚀 Quick Start](https://www.elatoai.com/docs/quickstart)
- [Build with PlatformIO](https://www.elatoai.com/docs/platformio)
- [Build on Arduino IDE](https://www.elatoai.com/docs/arduino)
- [Deploy globally](https://www.elatoai.com/docs/blog/deploying-globally)
- [🤖🤖🤖 Deploy multiple devices](https://www.elatoai.com/docs/blog/multiple-devices)
## 📽️ Demo Video
Video links: [OpenAI Demo](https://youtu.be/o1eIAwVll5I) | [Gemini Demo](https://youtu.be/_zUBue3pfVI) | [Eleven Labs Demo](https://youtu.be/7LKTIuEW-hg) | [Hume AI EVI-4 Demo](https://youtu.be/Gtann5pdV0I)

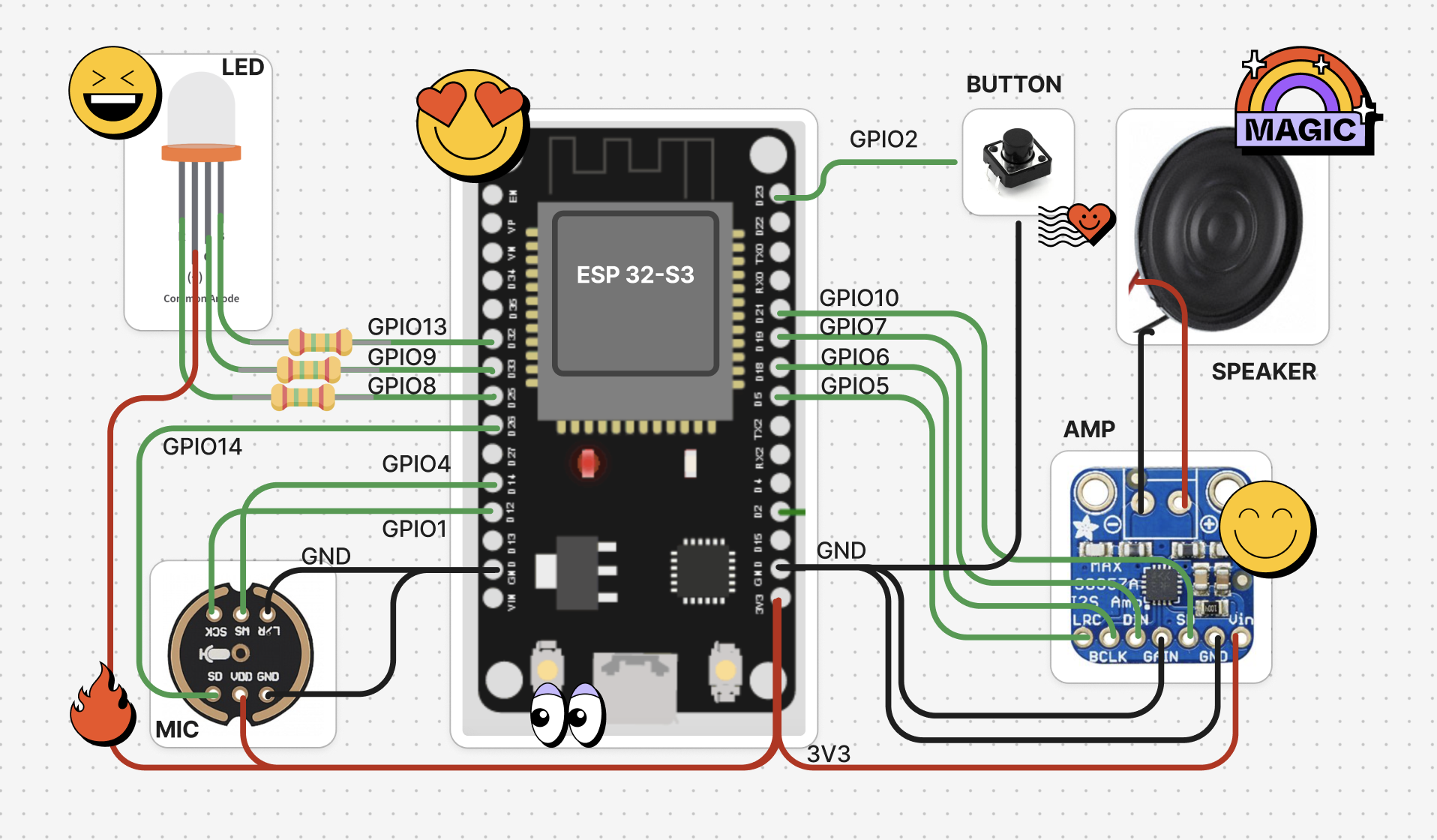

## 👷♀️ DIY Hardware Design

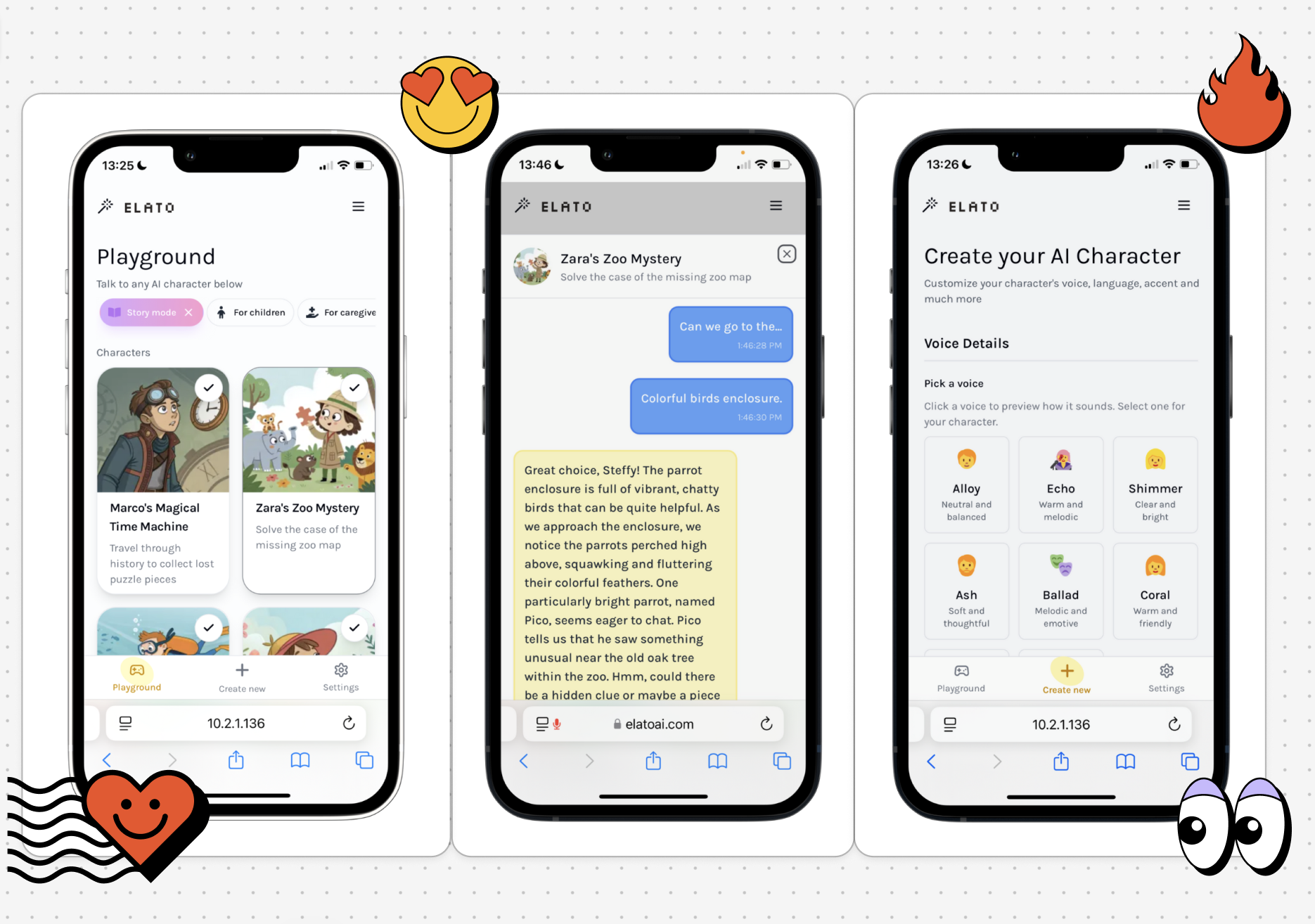

## 📱 App Design
Control your ESP32 AI device from your phone with the ElatoAI webapp.
## ⭐️ Key Voice AI Features
## 🌟 Full feature list
1. **Realtime Speech-to-Speech**: Instant speech conversion powered by OpenAI's Realtime API, Gemini's Live API, xAI's Grok Voice Agent API, Eleven Labs Conversational AI Agents and Hume AI EVI4.
2. **Create Custom AI Agents**: Create custom agents with different personalities and voices.
3. **Customizable Voices**: Choose from a variety of voices and personalities.
4. **Secure WebSockets**: Reliable, encrypted WebSocket communication.
5. **Server VAD Turn Detection**: Intelligent conversation flow handling for smooth interactions.
6. **Opus Audio Compression**: High-quality audio streaming with minimal bandwidth.
7. **Global Edge Performance**: Low latency Deno Edge Functions ensuring seamless global conversations.
8. **ESP32 Arduino Framework**: Optimized and easy-to-use hardware integration.
9. **Conversation History**: View your conversation history.
10. **Device Management and Authentication**: Register and manage your devices.
11. **User Authentication**: Secure user authentication and authorization.
12. **Conversations with WebRTC and Websockets**: Talk to your AI with WebRTC on the NextJS webapp and with websockets on the ESP32.
13. **Volume Control**: Control the volume of the ESP32 speaker from the NextJS webapp.
14. **Realtime Transcripts**: The realtime transcripts of your conversations are stored in the Supabase DB.
15. **OTA Updates**: Over the Air Updates for the ESP32 firmware.
16. **Wifi Management with captive portal**: Connect to your Wifi network or Hotspot from the ESP32 device.
17. **Factory Reset**: Factory reset the ESP32 device from the NextJS webapp.
18. **Button and Touch Support**: Use the button OR touch sensor to control the ESP32 device.
19. **No PSRAM Required**: The ESP32 device does not require PSRAM to run the speech to speech AI.
20. **OAuth for Web client**: OAuth for your users to manage their AI characters and devices.
21. **Pitch Factor**: Control the pitch of the AI's voice from the NextJS webapp to create cartoon-like voices.
22. **Tool calling**: Call tools and functions from the ESP32 device to the Deno Edge Functions for a complete voice AI agent.
23. **Tap to turn on**: Tap the touchpad to turn it on from sleep.
## Project Architecture
ElatoAI consists of three main components:
1. **Frontend Client** (`Next.js` hosted on Vercel) - to create and talk to your AI agents and 'send' it to your ESP32 device
2. **Edge Server Functions** (`Deno` running on Deno/Supabase Edge) - to handle the websocket connections from the ESP32 device and the LLM Provider API calls
3. **ESP32 IoT Client** (`PlatformIO/Arduino`) - to receive the websocket connections from the Edge Server Functions and send audio to the LLM Provider via the Deno edge server.
## 🛠 Tech Stack
| Component | Technology Used |
|-----------------|------------------------------------------|
| Frontend | Next.js, Vercel |
| Backend | Supabase DB |
| Edge Functions | Deno Edge Functions on Deno/Supabase |
| IoT Client | PlatformIO, Arduino Framework, ESP32-S3 |
| Audio Codec | Opus |
| Communication | Secure WebSockets |
| Libraries | ArduinoJson, WebSockets, AsyncWebServer, ESP32_Button, Arduino Audio Tools, ArduinoLibOpus |
## High-Level Flowchart
```mermaid
flowchart TD
subgraph UserLayer
UserInput[User Speech Input]
UserOutput[AI Generated Speech Output]
end
UserInput --> ESP32
ESP32[ESP32 Device] -->|WebSocket| Edge[Deno Edge Function]
Edge -->|OpenAI API| OpenAI[OpenAI Realtime API]
Edge -->|Gemini API| Gemini[Gemini Live API]
Edge -->|xAI API| xAI[xAI Grok Voice Agent API]
Edge -->|ElevenLabs API| ElevenLabs[ElevenLabs AI Agents]
Edge -->|Hume API| Hume[Hume AI EVI4]
OpenAI --> Edge
Gemini --> Edge
xAI --> Edge
ElevenLabs --> Edge
Hume --> Edge
Edge -->|WebSocket| ESP32
ESP32 --> UserOutput
```
## Project Structure
```mermaid
graph TD
repo[ElatoAI]
repo --> frontend[Frontend Vercel NextJS]
repo --> deno[Deno Edge Function]
repo --> esp32[ESP32 Arduino Client]
deno --> supabase[Supabase DB]
frontend --> supabase
esp32 --> websockets[Secure WebSockets]
esp32 --> opus[Opus Codec]
esp32 --> audio_tools[arduino-audio-tools]
esp32 --> libopus[arduino-libopus]
esp32 --> ESPAsyncWebServer[ESPAsyncWebServer]
```
## ⚙️ PlatformIO Config
```ini
[env:esp32-s3-devkitc-1]
platform = espressif32 @ 6.10.0
board = esp32-s3-devkitc-1
framework = arduino
monitor_speed = 115200
lib_deps =
bblanchon/ArduinoJson@^7.1.0
links2004/WebSockets@^2.4.1
ESP32Async/ESPAsyncWebServer@^3.7.6
https://github.com/esp-arduino-libs/ESP32_Button.git#v0.0.1
https://github.com/pschatzmann/arduino-audio-tools.git#v1.0.1
https://github.com/pschatzmann/arduino-libopus.git#a1.1.0
```
## 📊 Important Stats
- **Latency**: <2s round-trip globally
- **Audio Quality**: Opus codec at 12kbps (high clarity) 24kHz sampling rate
- **Uninterrupted Conversations**: Up to 15 minutes continuous conversations globally
- **Global Availability**: Optimized with edge computing
## 🛡 Security
- Secure WebSockets (WSS) for encrypted data transfers
- Optional: API Key encryption with 256-bit AES
- Supabase DB for secure authentication
- Postgres RLS for all tables
## 🚫 Limitations
- 3-4s Cold start time while connecting to edge server
- Tested with up to 17 minutes of uninterrupted conversations
- Edge server stops when wall clock time is exceeded
- No speech interruption detection on ESP32
## 🙌 Contributing
We value your contributions! Here are some ideas:
1. Speech Interruption on ESP32
2. ~~Adding Arduino IDE support~~
3. ~~Add Hume API client for emotion detection~~
4. Add MCP support on Deno Edge
5. ~~Plug in Eleven Labs API for voice generation~~
6. Add Azure OpenAI Support (easy pickens) - in review
7. Add Cartesia Support
8. Add Amazon Nova Support
9. Add Deepgram
## License
This project is licensed under the MIT License - see the [LICENSE](LICENSE) file for details.
